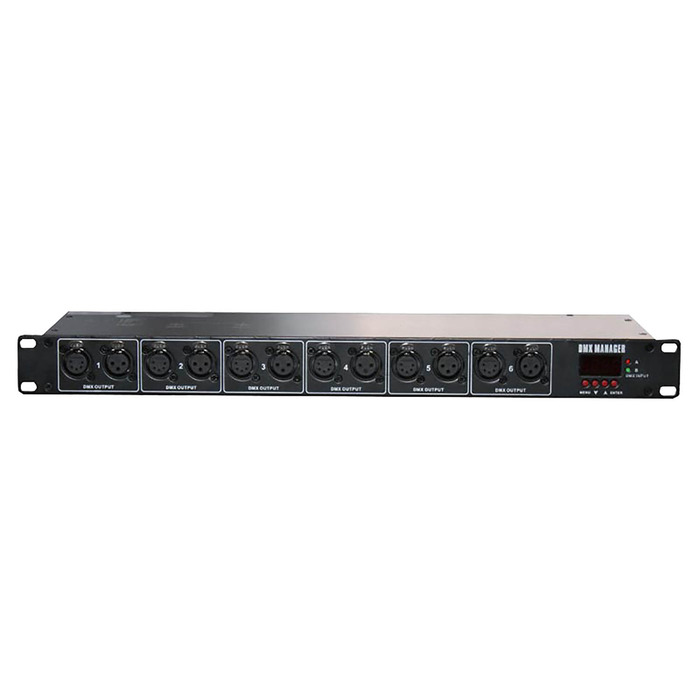

19" DMX Merger

Split & Merge DMX Signals. 2 Inputs & 6 Outputs. 3 Pin & 5 Pin XLR Inputs/Outputs. Complete Line Isolation. 1U RackmountableMains Supply: 240v DMX Output: 3 Pin & 5 Pin XLR Unit Size: 1u Dimensions: 482 x 44 x 150mm Weight: 2. 9Kg. A must have piece of kit for any installation where multiple DMX lines are being run or a DMX splitter is required. The DMS19 offers 6 isolated DMX outputs in either 3 or 5 pin configurations and 2 DMX inputs also in 3 or 5 pin configurations. This merger/splitter unit has several different working modes which include HTP (Highest takes priority) mode- backup mode and merge mode. HTP mode allows the highest DMX value from either DMX input to take order. Backup mode adds extra safeguarding against a failure from the control aspect where should the control on input 'A' fail- input 'B' will become active and take over. Merge mode allows the user to combine two control options and send down one DMX line/output. . dmx splitter-dmx booster-dmx mixer-dmx isolator
